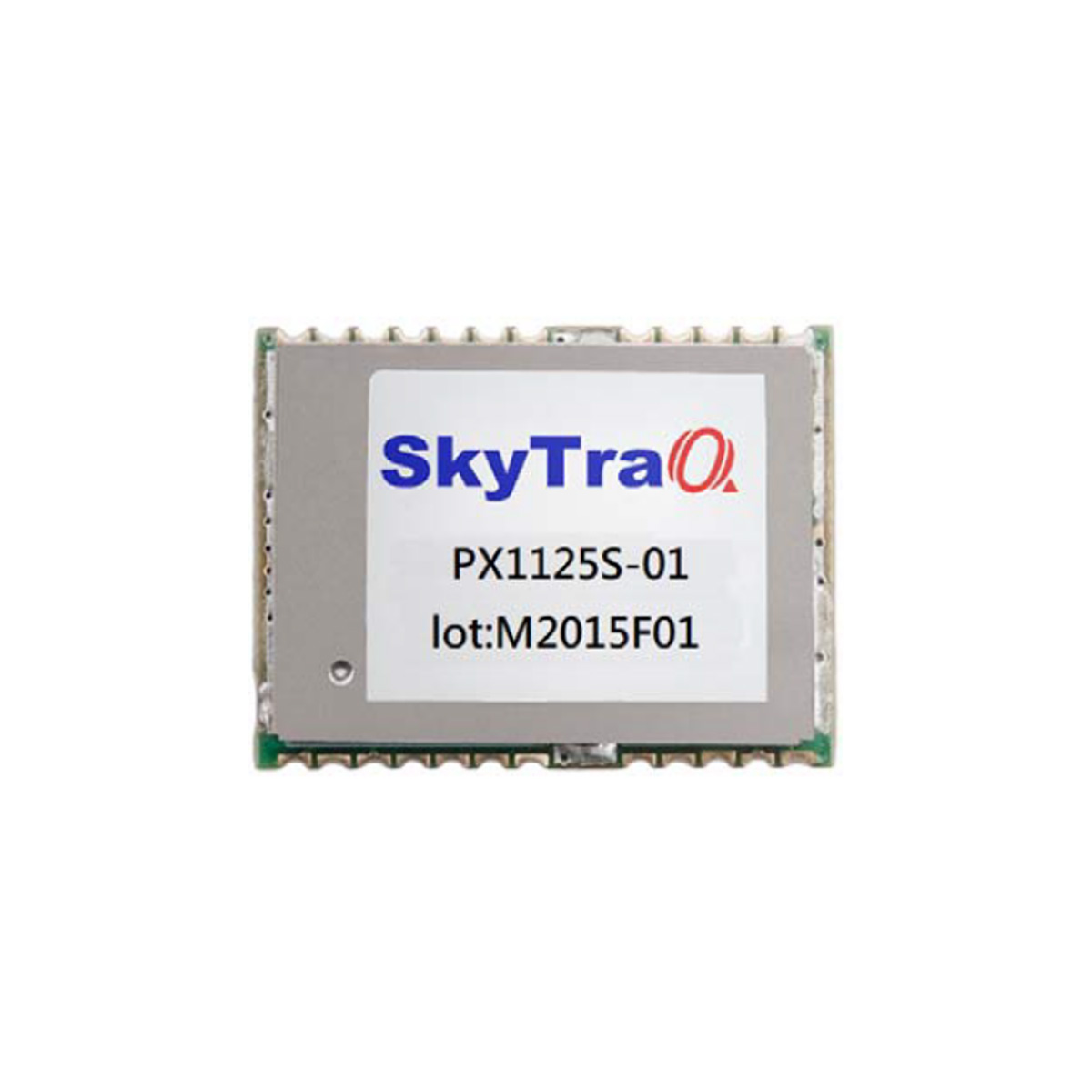

PX1125S-01A (GNSS Receiver Module)
₹810.00
The PX1125S-01 is a satellite navigation receiver capable of using NavIC L5, GAGAN L1, and GPS L1 signal to provide 3D navigation in a single compact SMD module.
- Manufacturer : Skytraq
- Manufacturing P/N (SKU) : PX1125S-01A
- Package Type (Box, Strip, Single) : Tray Package
- Specifications / Product Attributes / Features : IRNSS Module
- RoHS : Yes
- MOQ : 1
- SPQ : 448
372 in stock
Description
The PX1125S-01 can track all in-view GPS, GAGAN and NavIC satellites. It is fully autonomous such that once power is applied, the receiver automatically searches, acquires and tracks satellite signals. When a sufficient number of satellites are tracked with valid measurements, the receiver produces 3D position and velocity outputs. NavIC + GPS dual satellite capability enables using greater number of satellite signal than GPS-only receivers. The increased satellite number offers superior performance in challenging urban canyon and multipath environments.
Features
- L1 / L5 signal reception
- Works with NavIC, GAGAN, GPS
- Less than 30 second cold start TTFF
- ~ 1 second hot start
- ~2.5m CEP accuracy
- Multipath detection and suppression
- Works with passive and active antenna
- Complete receiver in 12.2mm x 16.0mm size
- Operating temperature -40 ~ +85ºC
- Pb-free RoHS compliant
Additional information
| Weight | 1.6 g |
|---|
